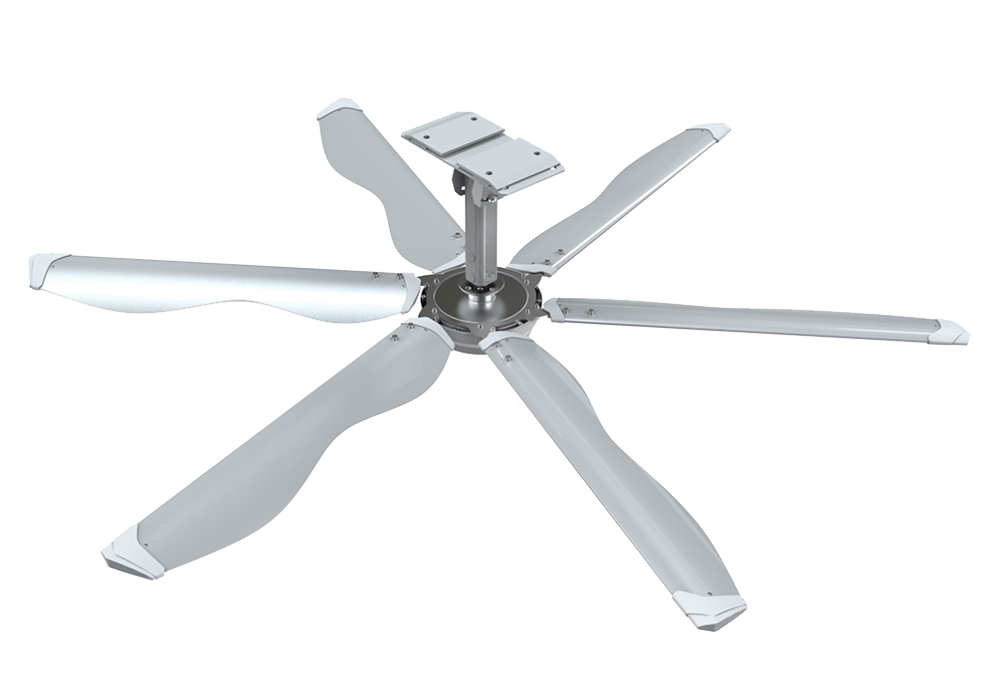

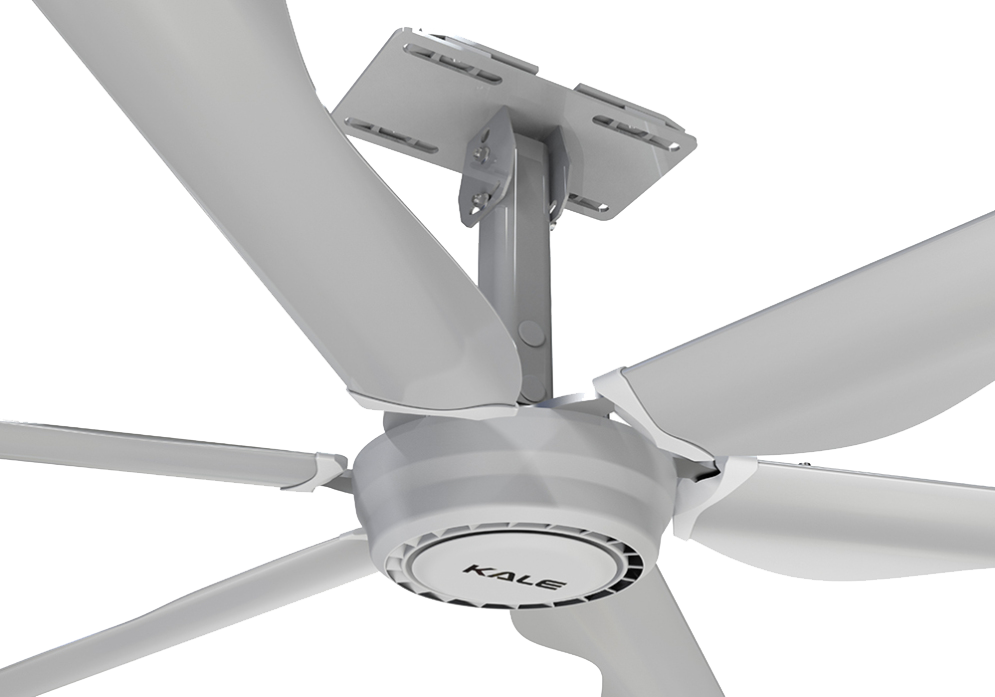

AIRCOOL commercial ceiling fan represents a significant advancement in air circulation technology, offering a blend of efficiency, comfort, and aesthetic appeal. Aircool fan is designed to provide high-volume, low-speed airflow, making them ideal for a wide range of applications, from commercial to outdoor spaces.
Key Features:
Equipped with PMSM technology, which ensures low energy consumption while delivering high performance.PMSM motor technology eliminates the need for regular maintenance.Designed to run smoothly and quietly, with noise levels as low as 40dB(A).Promote efficient air circulation, creating a comfortable environment by reducing temperature stratification and improving air quality.

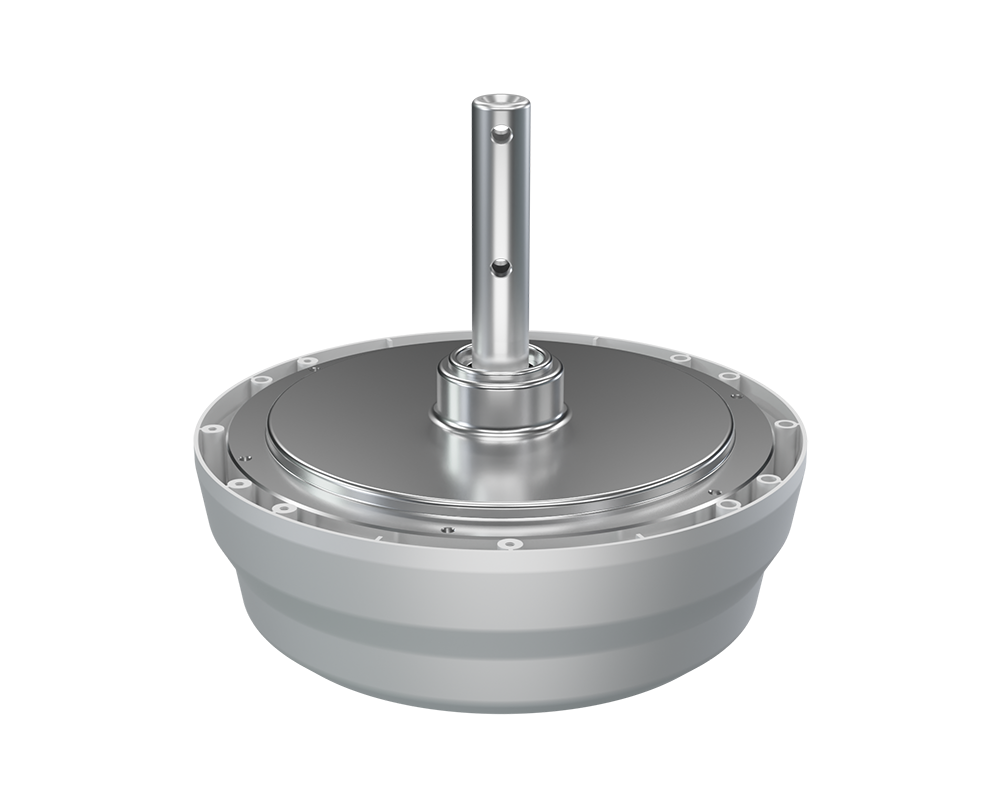

The fully enclosed, gear less PMSM motor operates with minimal noise (<40dB(A)) and vibration due to its low RPM design. With an IP65 rating for complete protection against dust and water, it delivers reliable, maintenance-free performance 24/7, even in extreme conditions, ensuring long-term cost-effectiveness.

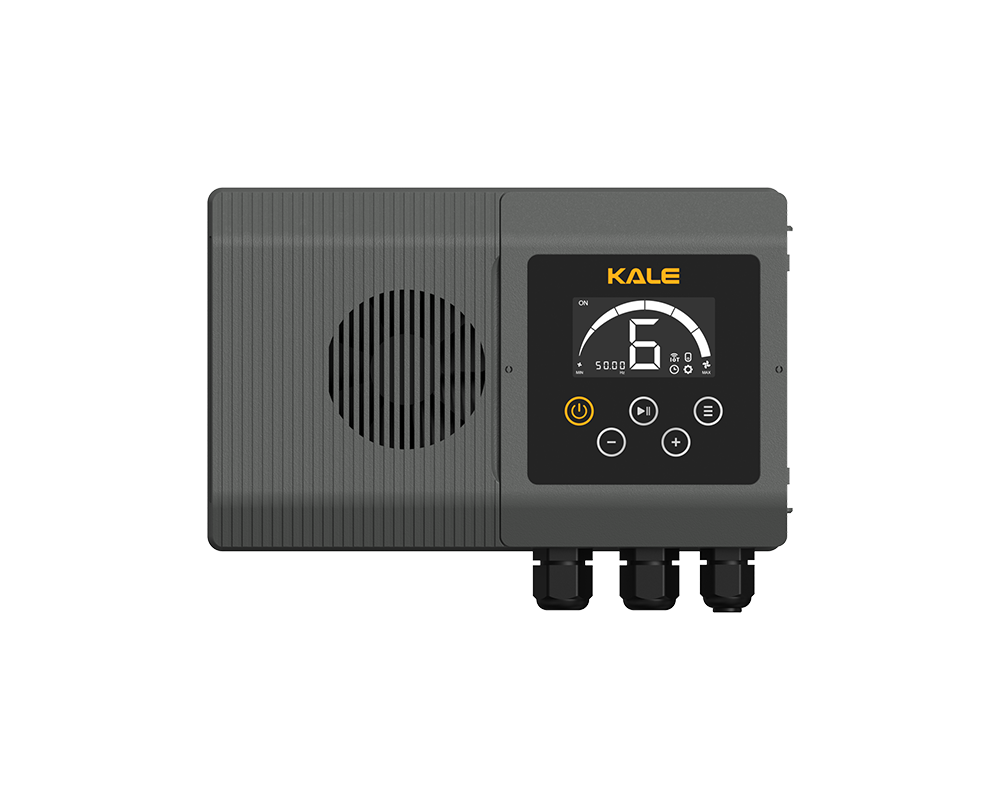

Optional plan with the new fan’s controller – KALE FANS Cloud Available for iPad, PC and Phone to access the control system.

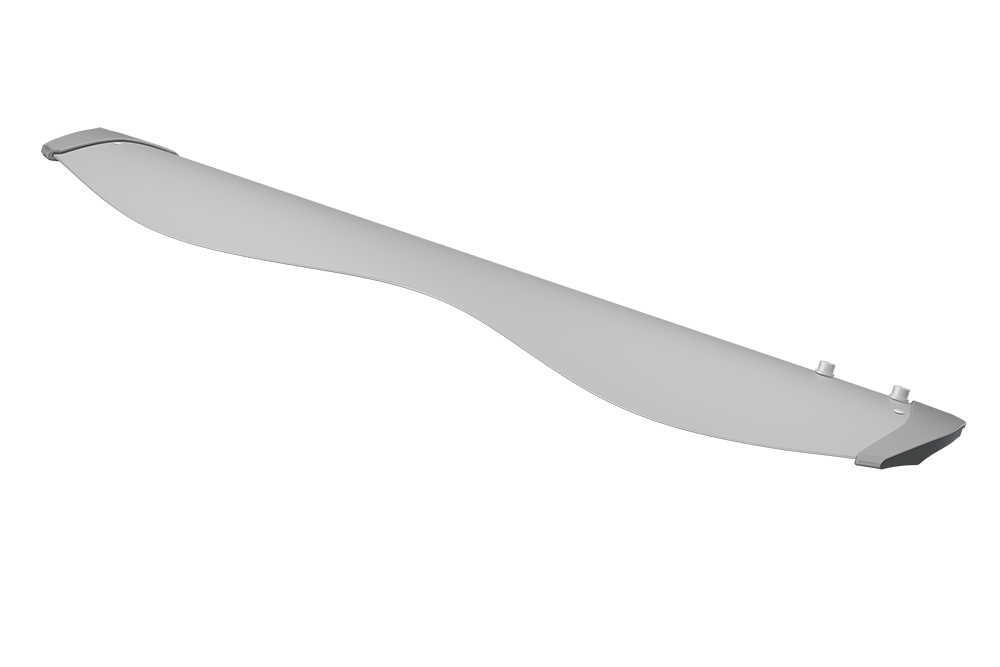

Aircool fan blade adopts the wavy streamline shape design, which creates a smooth, lively, and tense visual effect with a modern feel. The fan can use a variety of color combinations to meet the needs of different customer environments.
| Model | Size | Air volume | Max speed | Fan weight | Power | Full load current | Noise level |
| SHVLS-D5BAA42 | 14ft(4.2m) | 7550m³/min | 72RPM | 52kg | 0.35kW | 1.5Amps/220V | <40.0dB（A) |
| SHVLS-D5BAA36 | 12ft(3.6m) | 6560m³/min | 95RPM | 48kg | 0.33kW | 1.3Amps/220V | <40.0dB（A) |
| SHVLS-D5BAA30 | 10ft（3.0m） | 5250m³/min | 110RPM | 44kg | 0.30kW | 1.1Amps/220V | <40.0dB（A） |
| SHVLS-D5BAA25 | 8ft（2.5m） | 4550m³/min | 130RPM | 41kg | 0.26kW | 0.8Amps/220V | <40.0dB（A） |
| SHVLS-D5BAA20 | 6.5ft（2.0m） | 3900m³/min | 150RPM | 38kg | 0.14kW | 0.4Amps/220V | <40.0dB（A） |
Aircool commercial ceiling fans are designed for small to medium-sized commercial spaces, ideal to ensure comfort and productivity, which is a top choice for building spaces like gyms, hotels and offices.
Aircool is designed to provide high-volume, low-speed airflow, making them ideal for a wide range of applications, from residential to commercial spaces.
We have an experienced engineering team that provides customized installation solutions.
