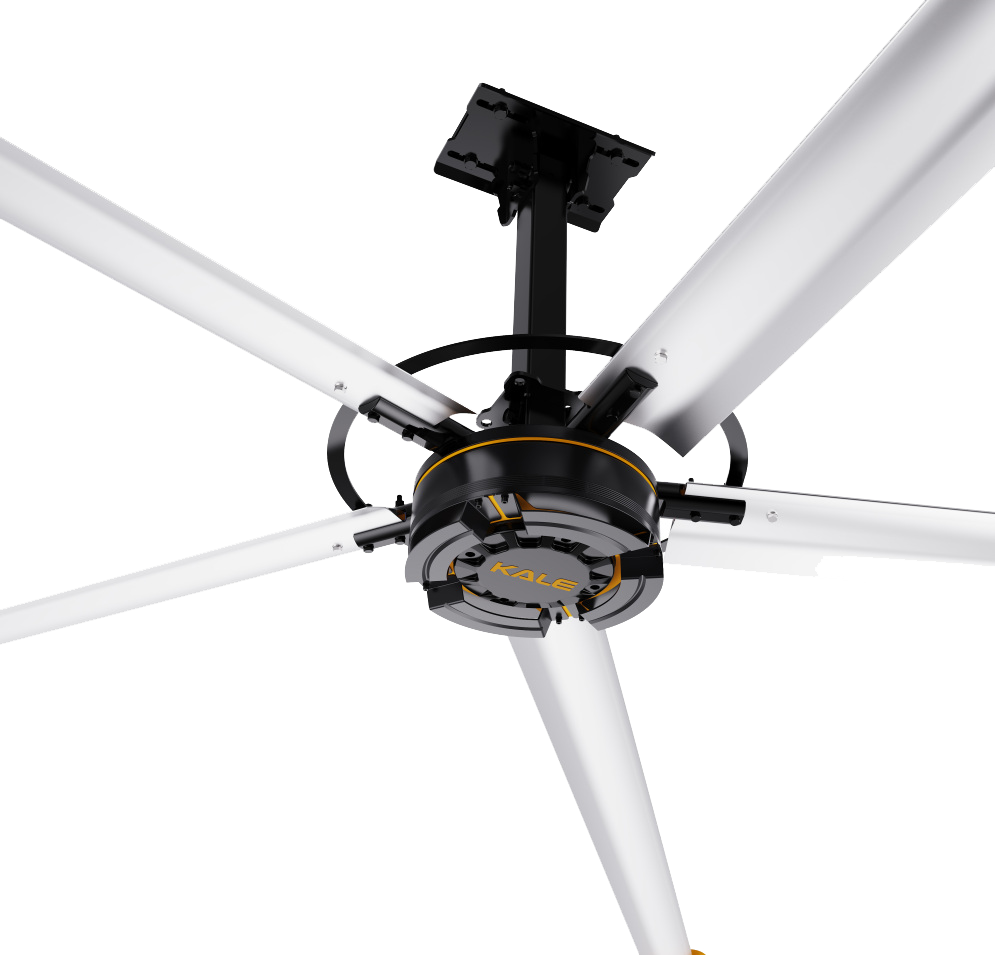

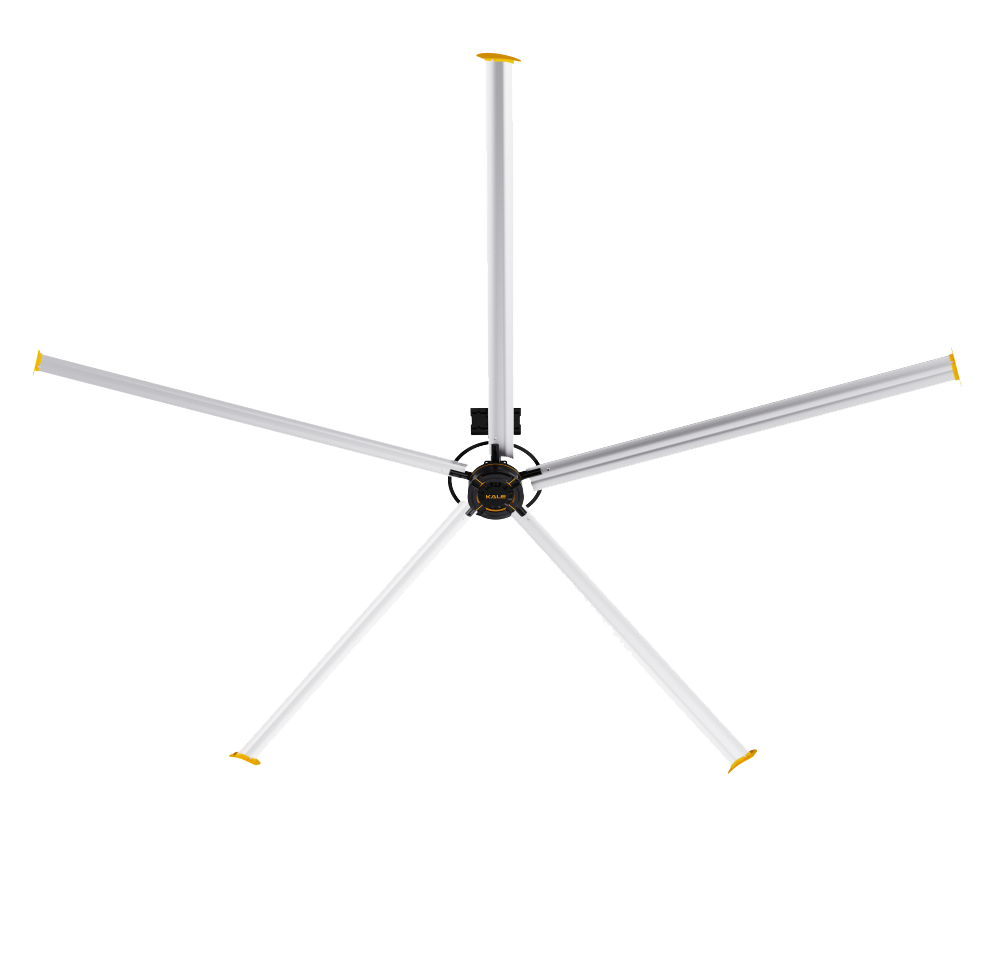

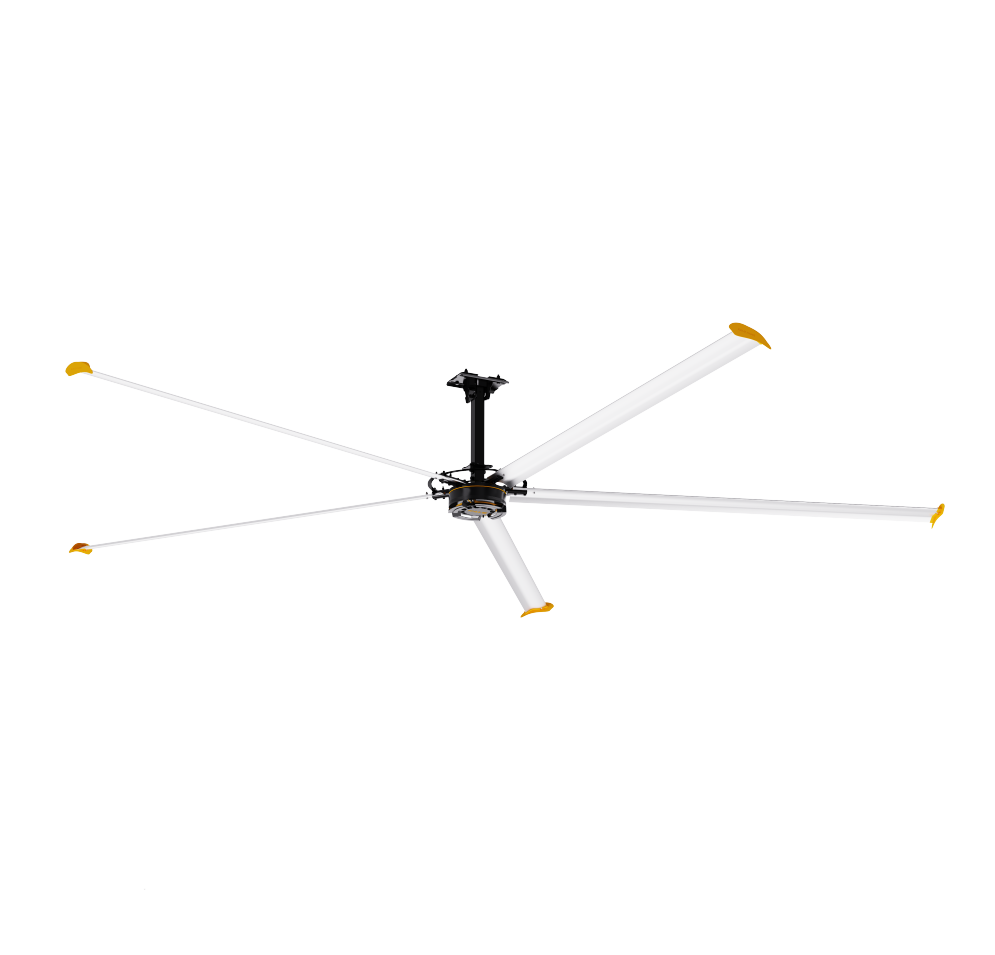

ZEPHYRUS HVLS fan redefines the industry standard for industrial fans with its outstanding performance. Equipped with advanced PMSM technology, it delivers three-dimensional natural wind airflow while consuming minimal energy. The fan also features multiple safety measures to ensure secure usage.
Key Features:
Covers large areas with a single fan up to 1,500m², providing balanced temperature distribution.Three-dimensional natural breeze that makes people feel up to 5-8°C cooler.Advanced PMSM technology and patented internal rotor structure.The whole fan has low maintenance costs with super protection & long life.Equipped with dovetail power fan blade that delivers enhanced air speed performance.

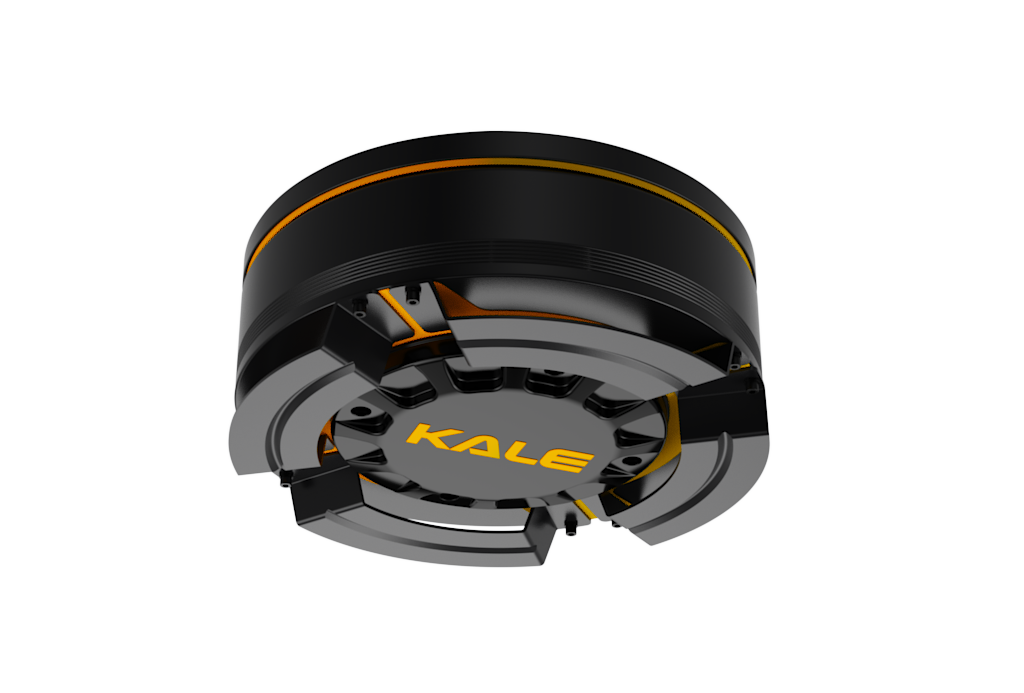

EURUS III fan uses an industry-unique external rotor PMSM (permanent magnet synchronous motor). EURUS III fan motor's solid foundation of large air volume and coverage area is due to NdFeB rare-earth magnets,99.99% pure copper wire. With a maximum torque of 300 N·m, the EURUS III fan motor delivers a more consistent airflow. This enables it to achieve a full load air volume of 933,000 m³/h.
Remote control and monitoring of multiple devices.
RUN/STOP status and operation speed adjustment of fans can be controlled with a timing function (daily/weekly), countdown and temperature control.
Constraint is up to 30 units.
The distance between the master controller and the sub-controller should be < 2km.
Optional plan with the new fan’s controller – KALE FANS Cloud Available for iPad, PC and Phone to access the control system.
KALE FANS' unique fan blade with a solid-curve ending greatly improves the air generation performance.
Winglet guarantees the safe and stable operation by reducing the fan blade vibration.
Unique Chamber Design6 strengthen ribs with up to 4mm thickness within the blade chamber, significantly reduce the blade amplitude during fan operation and allow fans to fit into narrow spaces.
Long Service Time & Corrosion-resistantMade of high-strength aerospace magnesium-aluminum alloy(6063-T6). The surface of the fan blade adopts an electrostatic spraying process, which is corrosion-resistant, enables its usability in harsh scenarios.

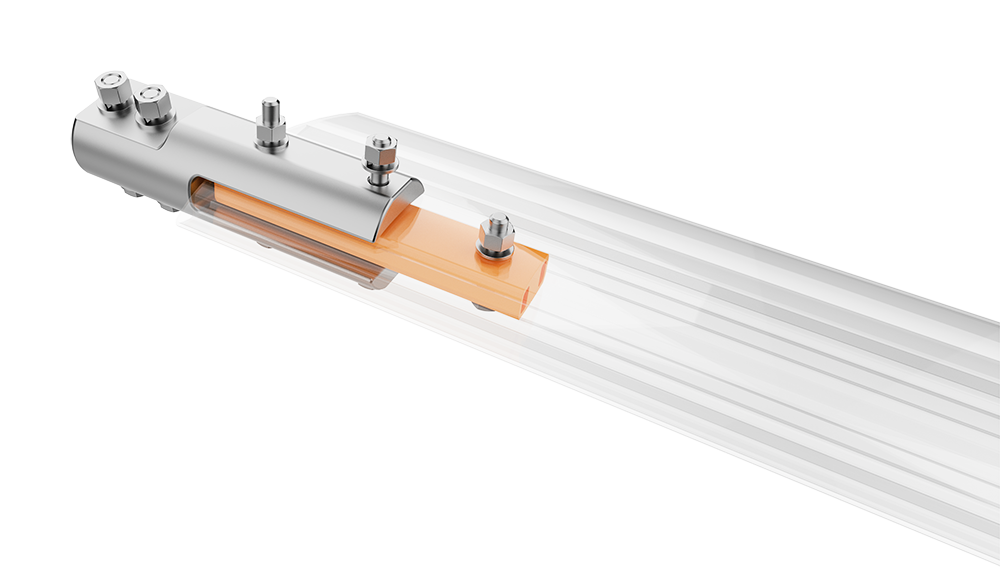

KALE FANS thickened external connector with internal safety part withstands 300KG weight.
Double ProtectionThe external connector is made of aviation hard aluminum 7075-T6, with a tensile strength of 595 MPa.
Safety internal connector: wear-resistant & silent.
Millions of Times TestedKALE FANS blade system stands more than a million times of overload fatigue experiments, overcomes the problem of long-term operation metal fatigue and brings you a long-lasting and stable excellent experience.
| Model | Size | Air volume | Max speed | Fan weight | Power | Full load current | Noise level |
| HVLS-D3AAA73 | 24ft（7.3m） | 15000m³/min | 54RPM | 115kg | 1.3kW | 4.3Amps/220V | <40.0dB（A） |
| HVLS-D3AAA61 | 20ft（6.1m） | 14100m³/min | 60RPM | 111kg | 1.1kW | 2.8Amps/220V | <40.0dB（A） |
| HVLS-D3AAA55 | 18ft（5.5m） | 13250m³/min | 64RPM | 104kg | 0.7kW | 2.5Amps/220V | <40.0dB（A） |
| HVLS-D3AAA49 | 16ft（4.9m） | 12300m³ /min | 78RPM | 101kg | 0.7kW | 2.2Amps/220V | <40.0dB（A） |
ZEPHYRUS HVLS ceiling fans enhance air circulation, improving comfort and safety in vast factories, warehouses, and automotive workshops and promoting animal health and ensuring worker well-being.
Design for high and large spaces, Zephyrus generate massive air-volume with low speed, create a consistent and comfortable environment.
We have an experienced engineering team that provides customized installation solutions.
