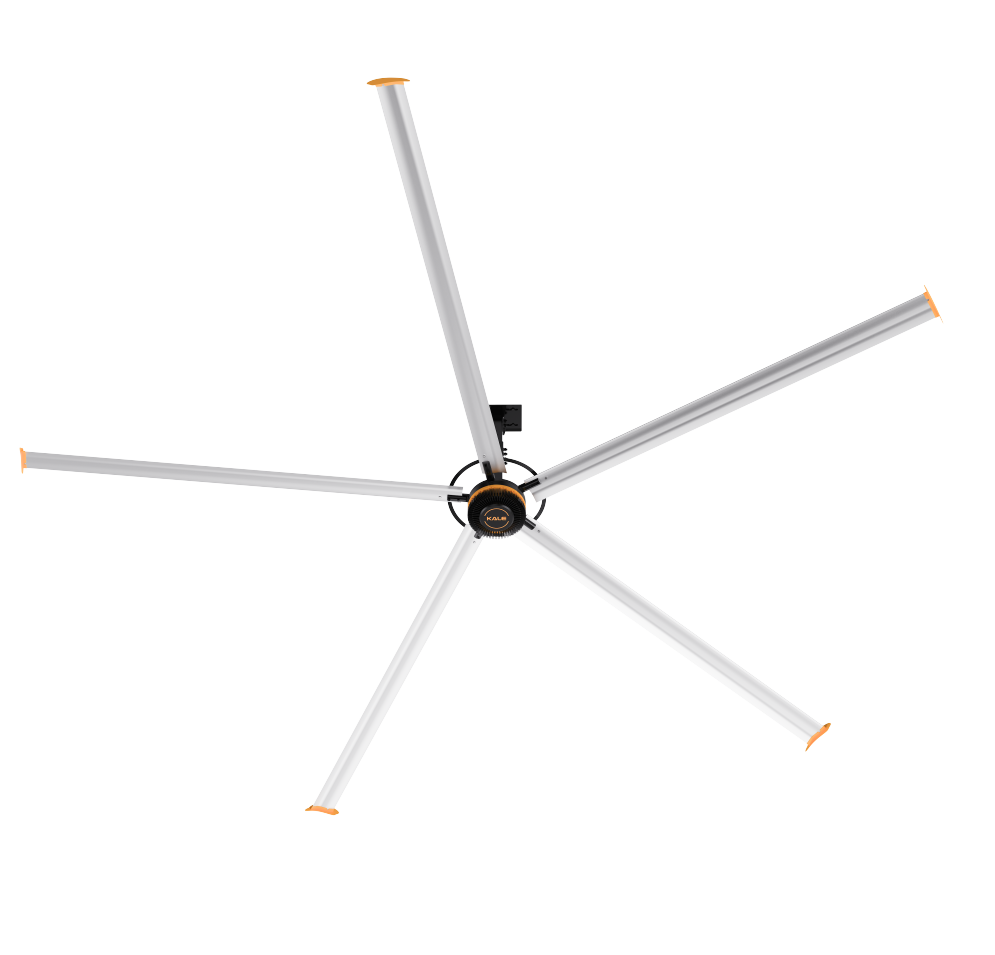

EURUS lII HVLS fan delivers powerful airflow to combat the heat, keeping you comfortable and cool even when you sweat. It requires no maintenance and operates so quietly that you might forget it's on. EURUS lII fan features a PMSM (permanent magnet synchronous motor) drive system, diameters ranging from 16ft to 24ft with up to 2,000m² coverage area. A glance reveals its striking beauty.
Key Features:
Extra-large coverage areas & air volume with a single fan up to 2,000m².Excellent energy-saving, EURUS III fan with a 2,000m² coverage area, consuming only 1.5 kW of electricity.Large volume, three-dimensional natural breeze is more comfortable and healthier than mechanical ventilation.Low-speed operation eliminates heat accumulation on the roof. It can be used in multiple seasons.Advanced PMSM technology, patented external rotor structure.PMSM motor is maintenance-free, and the whole fan has low maintenance costs with super protection & long life.Equipped with dovetail power fan blade that deliver enhanced air speed performance in the 1.6-2m high wind zone.Stable quality, KALE FANS has been equipped with the Danfoss control boxes for over ten years.

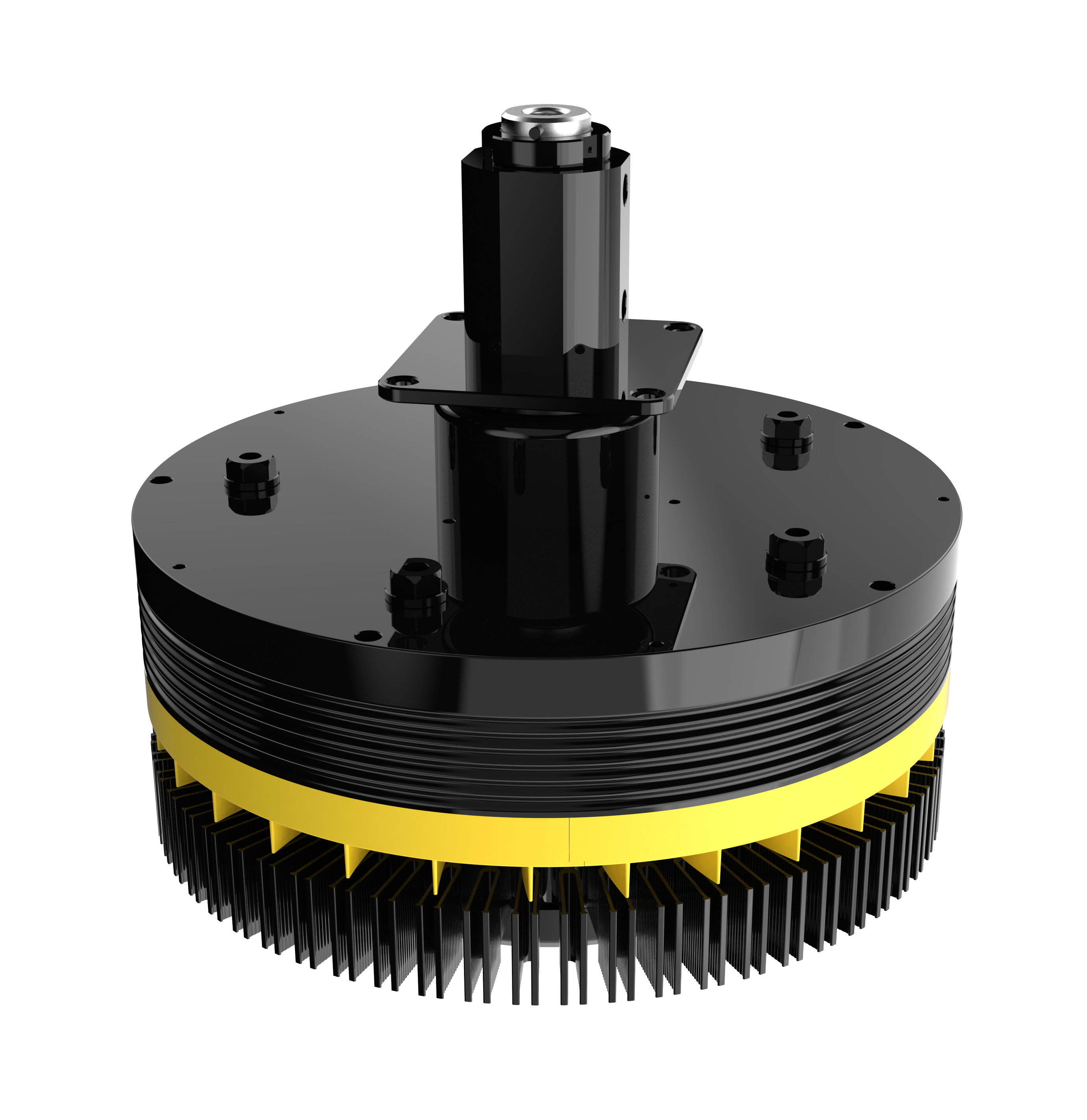

EURUS Ill fan uses an industry-unique external rotor PMSM (permanent magnet synchronous motor). EURUS III fan motor's solid foundation of large air volume and coverage area is due to NdFeB rare-earth magnets, 99.99% pure copper wire. With a maximum torque of 300 N·m, the EURUS III fan motor delivers a more consistent airflow. This enables it to achieve a full load air volume of 933,000 m³/h.

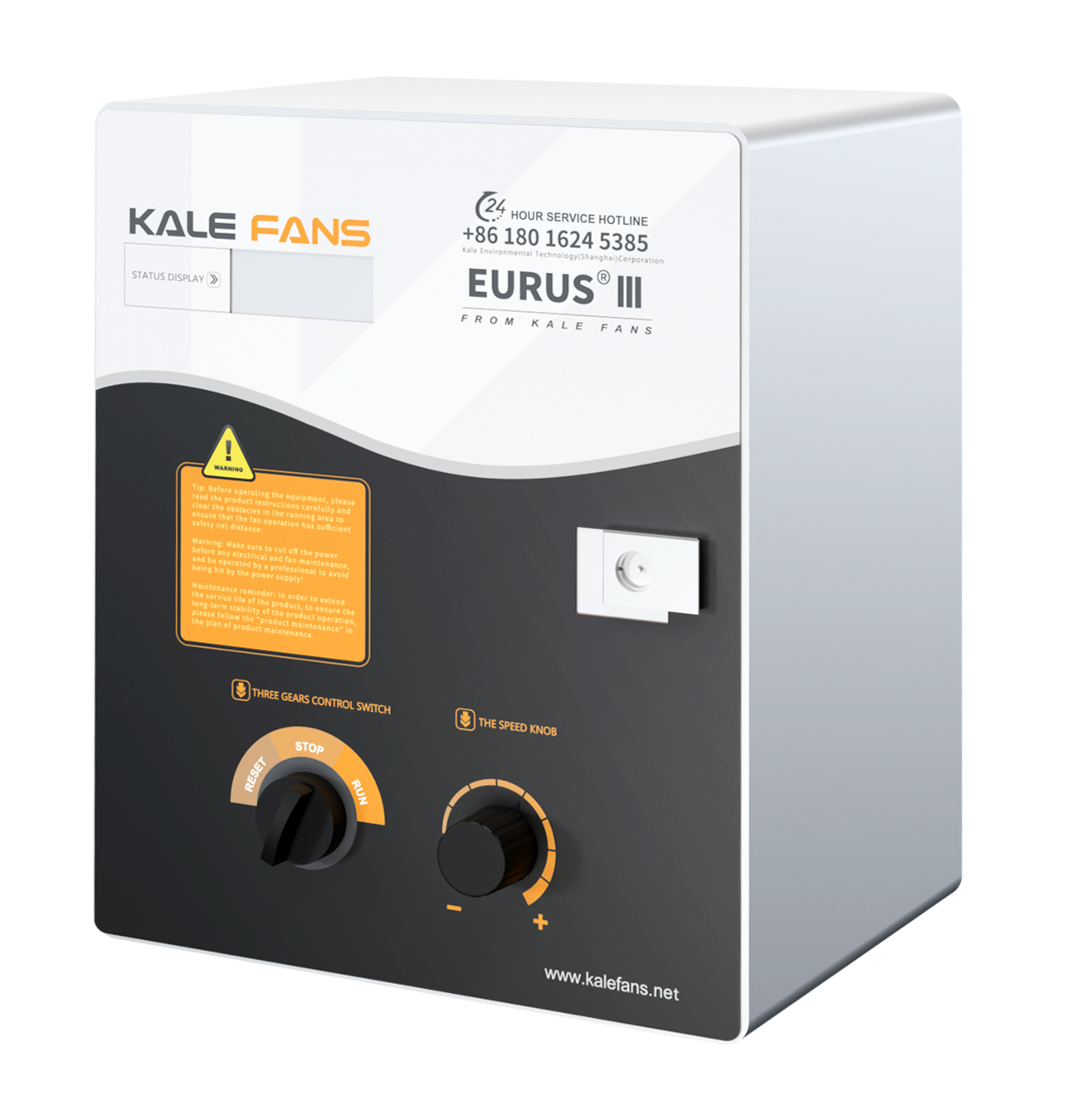

Schneider electrical sets with a built-in safety protection module that will interrupt the output automatically in case of an accident. International（Danfoss & Schneider）brand control cabinet, passed anti-creeping tests, which shield electromagnetic interference effectively. Stable quality, KALE FANS has been equipped with the Danfoss control cabinets for over ten years.
Optional plan with the new fan’s controller – KALE FANS Cloud Available for iPad, PC and Phone to access the control system.

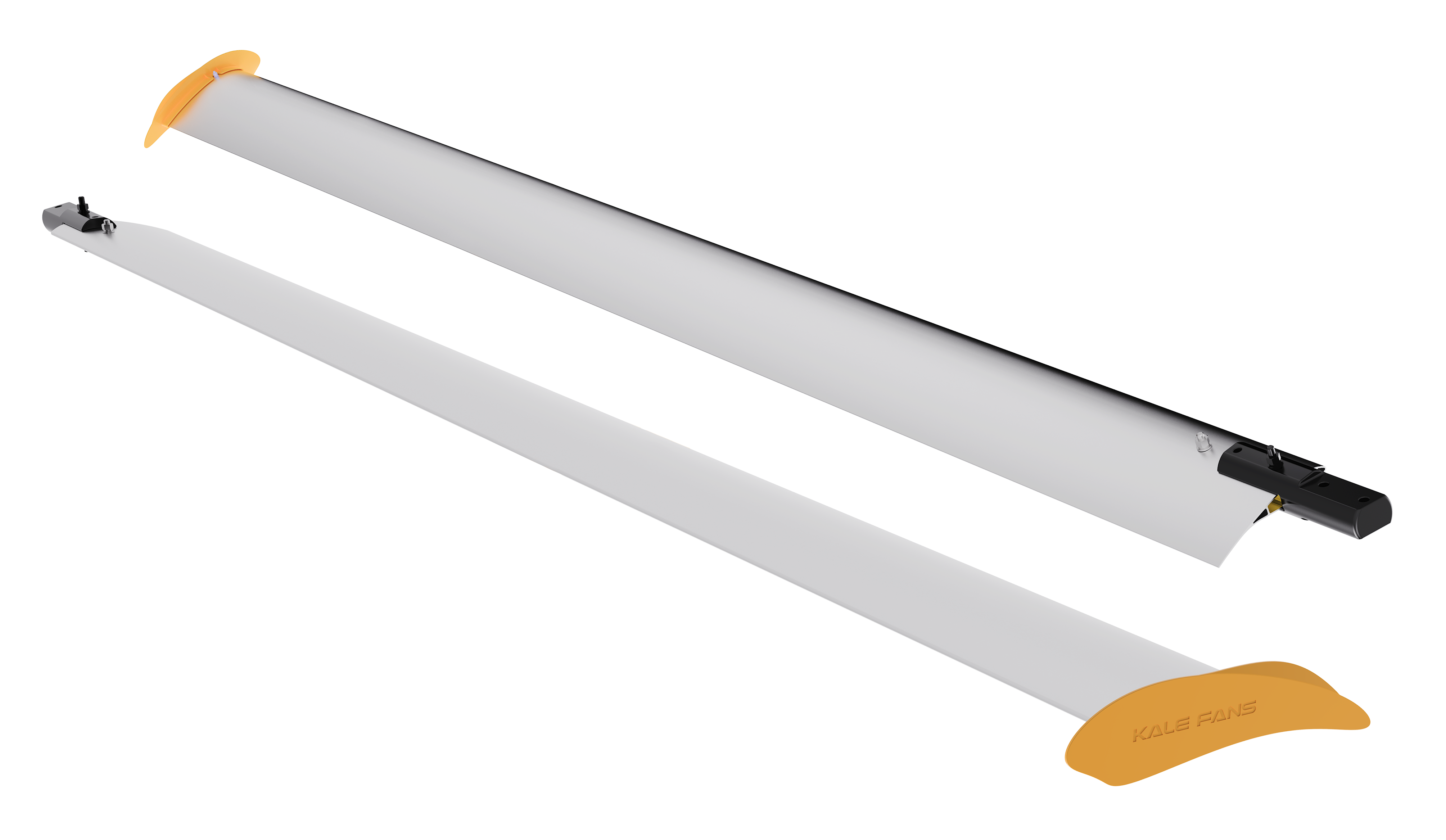

KALE FANS' unique fan blade with a solid-curve ending greatly improves the air generation performance.
Winglet guarantees the safe and stable operation by reducing the fan blade vibration.
Unique Chamber Design6 strengthen ribs with up to 4mm thickness within the blade chamber, significantly reduce the blade amplitude during fan operation and allow fans to fit into narrow spaces.
Long Service Time & Corrosion-resistantMade of high-strength aerospace magnesium-aluminum alloy(6063-T6). The surface of the fan blade adopts an electrostatic spraying process, which is corrosion-resistant, enables its usability in harsh scenarios.

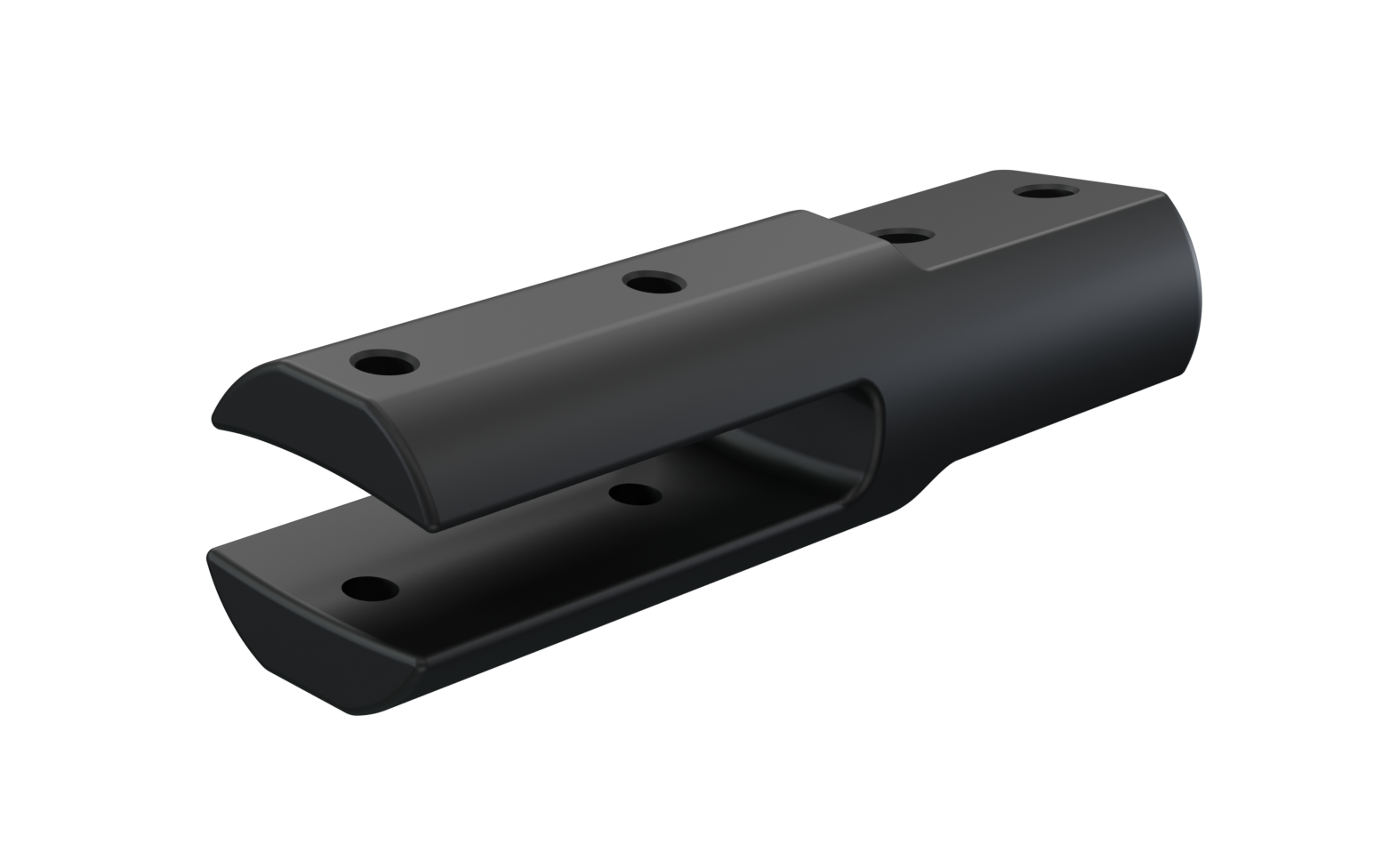

KALE FANS thickened external connector with internal safety part withstands 300KG weight.
Double ProtectionThe external connector is made of aviation hard aluminum 7075-T6, with a tensile strength of 595 MPa.
Safety internal connector: wear-resistant & silent.
Millions of Times TestedKALE FANS blade system stands more than a million times of overload fatigue experiments, overcomes the problem of long-term operation metal fatigue and brings you a long-lasting and stable excellent experience.
| Model | Size | Air volume | Max speed | Fan weight | Power | Full load current | Noise level |
| HVLS-D6AAA73 | 24ft（7.3m） | 15550m³/min | 54RPM | 124kg | 1.5kW | 4.9Amps/220V | <40.0dB（A） |
| HVLS-D6AAA61 | 20ft（6.1m） | 14650m³/min | 62RPM | 120kg | 1.1kW | 4.4Amps/220V | <40.0dB（A） |
| HVLS-D6AAA55 | 18ft（5.5m） | 13800m³/min | 68RPM | 112kg | 1.0kW | 4.2Amps/220V | <40.0dB（A） |
| HVLS-D6AAA49 | 16ft（4.9m） | 12670m³/min | 76RPM | 108kg | 1.0kW | 4.0Amps/220V | <40.0dB（A） |

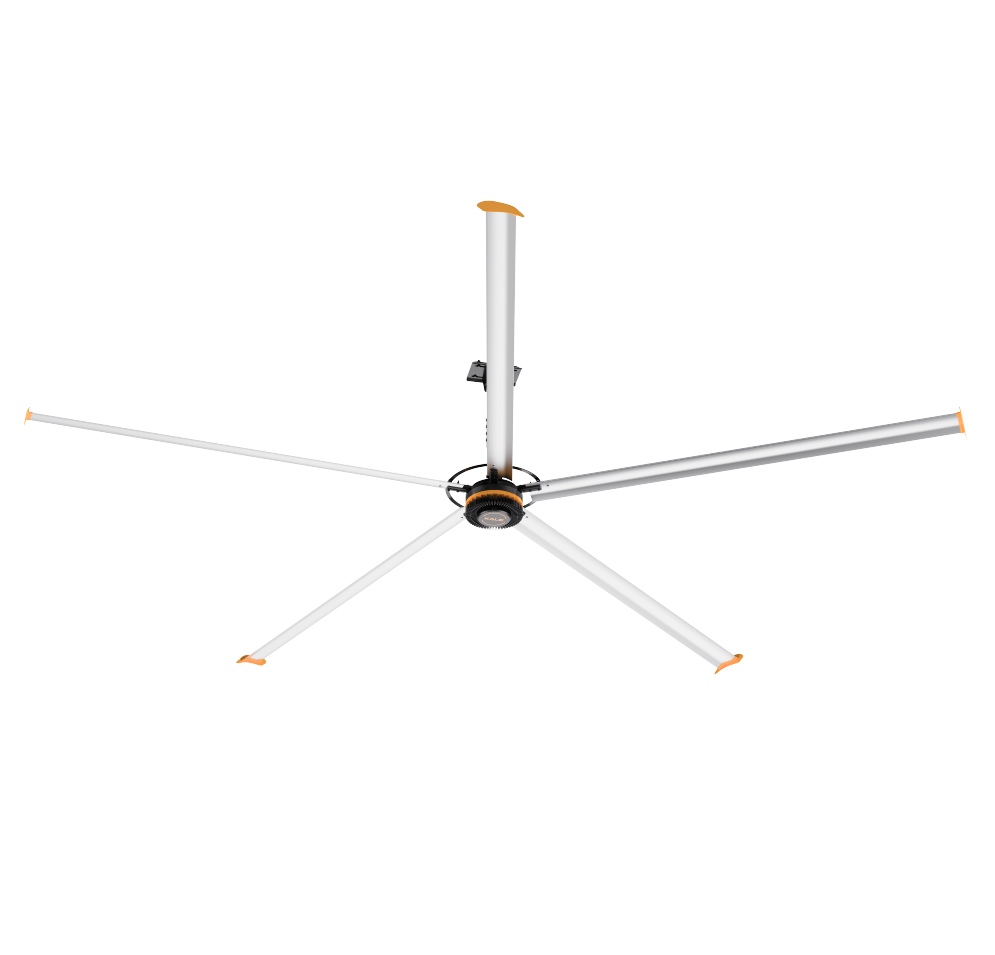

The EURUS III HVLS fan delivers high airflow, comfort and energy saving across vast industrial and commercial spaces with superior air circulation.
EURUS III is the perfect solution for tall and large spaces, such as warehouses, logistics centers, manufacturing workshops, exhibition halls, shopping malls, stadiums and transport hubs, etc.
We have an experienced engineering team that provides customized installation solutions.
