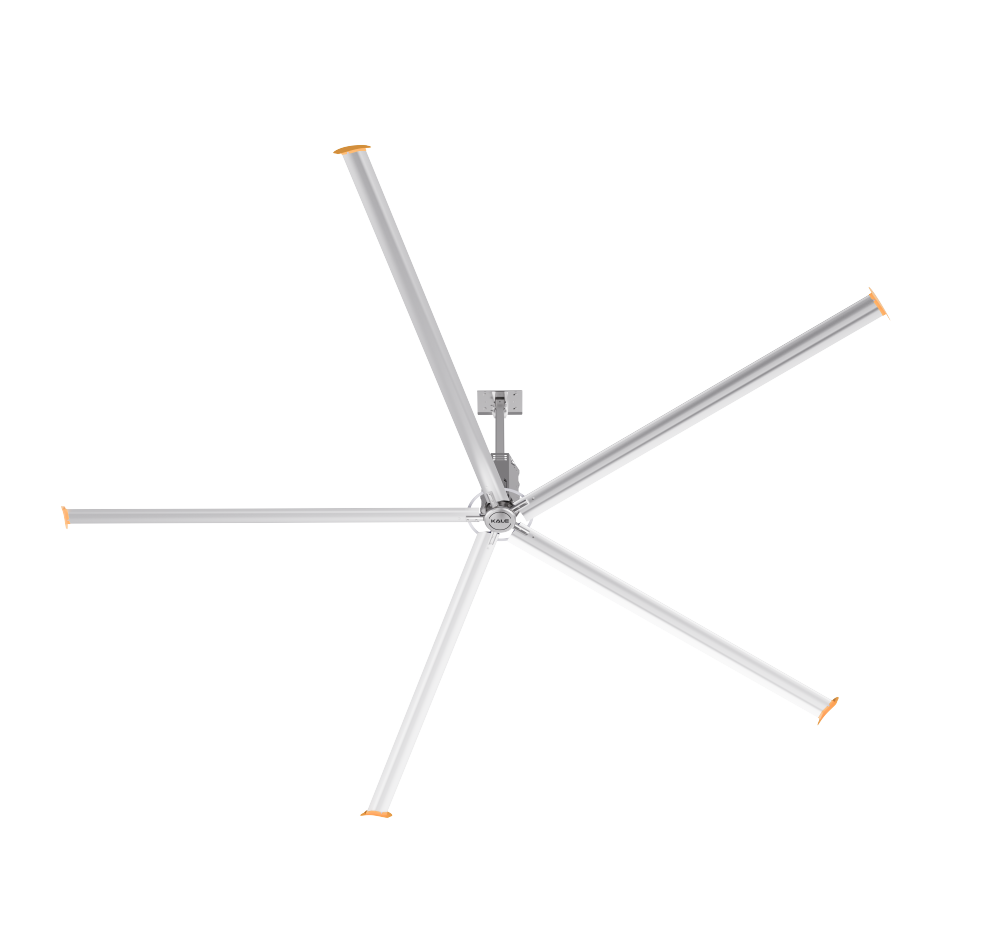

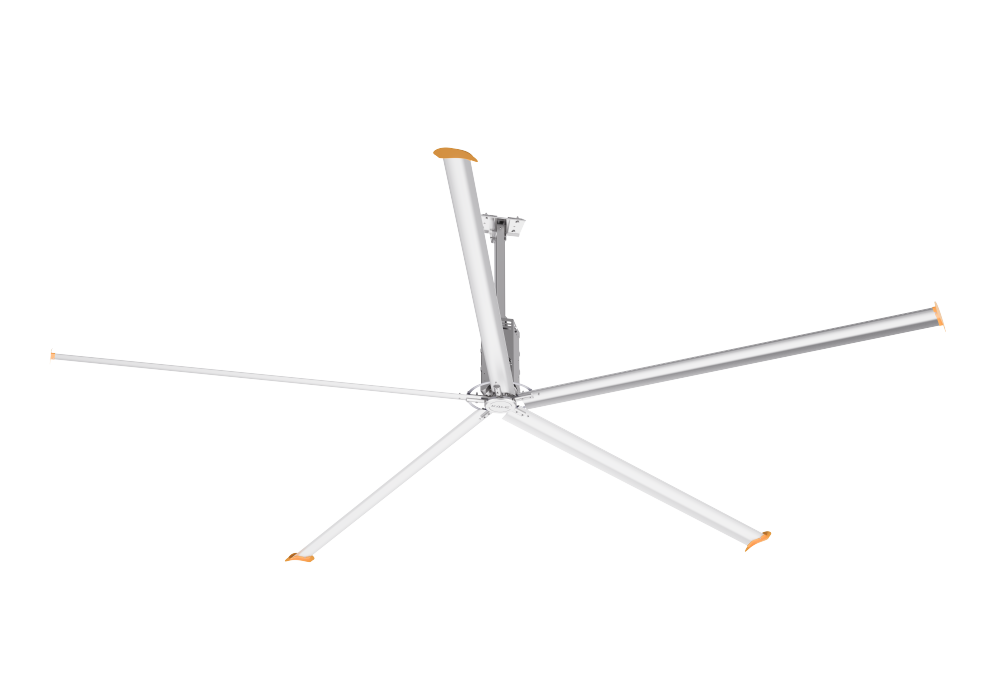

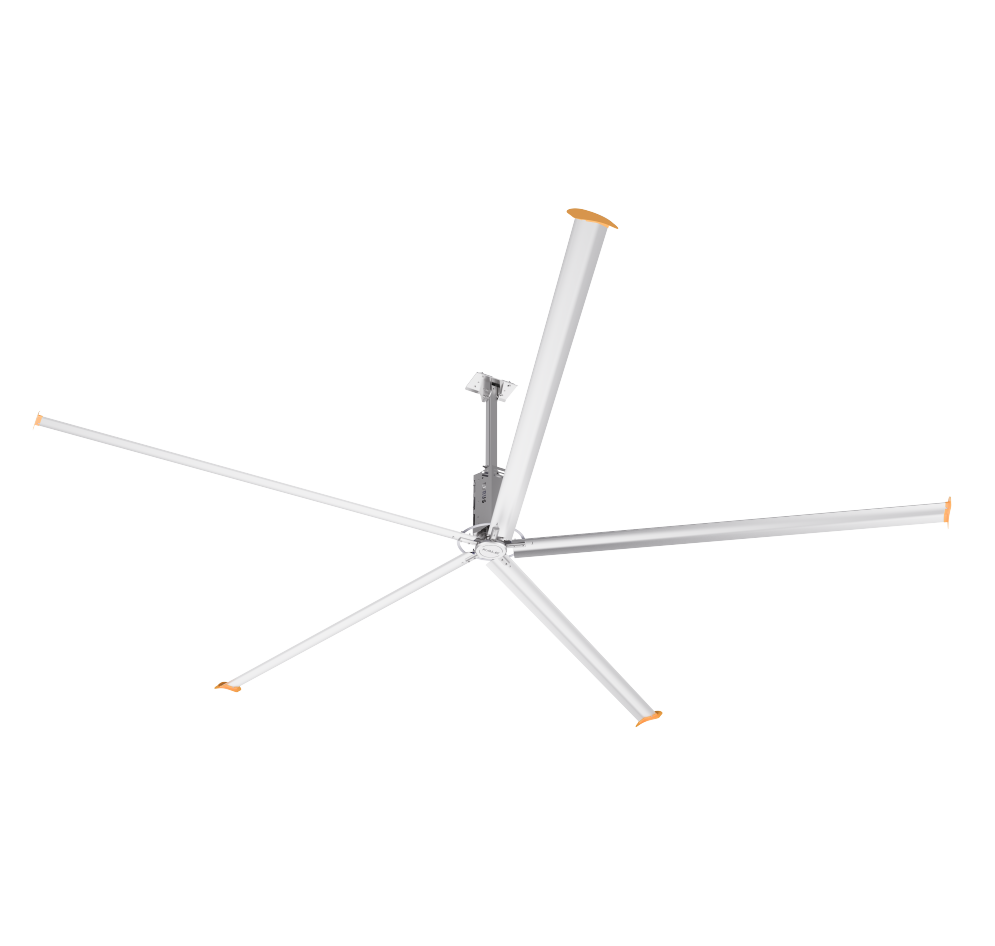

EURUS II INDUSTRIAL CEILING FAN

Industrial Comfort with Superior Energy Efficiency

EURUS ll fan handles the heat and humidity of harsh environments quietly and efficiently, maximizing employee comfort and improving work efficiency in any facility that values comfort and quietness.

Key Features:

Covers up to 1,500m² with 16-24 ft(4.9-7.3m) diameters, perfect for large space facilities. Air volume is equivalent to 50 powerful small fans of 0.75 meters, and only 1.5 kW can create a natural breeze and reduce energy costs.
Delivers a full-body breeze, which enhances comfort and sweat evaporation.
Adopt the imported German LENZE motor. The IE2 high-efficiency model delivers 5–10% energy savings relative to IE1 motors.
Equipped with dovetail power fan blade that deliver enhanced air speed performance in the 1.6-2m high wind zone.
Kale standard controller with water-proof and dust-proof.
2 sets safety rings ensure the solid connectionbetween gear motor and motor hub.
4 sets of steel guy wires & 1 set steel safety rope are used to connect the motor to the building structure firmly, providing an extra safety for the fan.

Reliable Germany Brand Gear Motor

EURUS ll fan adopts an imported German LENZE motor, and works with a German company to develop a gear motor for HVLS products.

Adopting an lE2 high-efficiency motor can save 5-10% than an lE1
Obtained CE, KC certifications

KALE STANDARD CONTROLLER

Remote control and monitoring of multiple devices.

RUN/STOP status and operation speed adjustment of fans can be controlled with a timing function (daily/weekly), countdown and temperature control.

Constraint is up to 30 units.

The distance between the master controller and the sub-controller should be < 2km.

Dovetail Power Fan Blade

High-efficiency Fan Blade Design

KALE FANS' unique fan blade with a solid-curve ending greatly improves the air generation performance.

Winglet guarantees the safe and stable operation by reducing the fan blade vibration.

Unique Chamber Design

6 strengthen ribs with up to 4mm thickness within the blade chamber, significantly reduce the blade amplitude during fan operation and allow fans to fit into narrow spaces.

Long Service Time & Corrosion-resistant

Made of high-strength aerospace magnesium-aluminum alloy(6063-T6). The surface of the fan blade adopts an electrostatic spraying process, which is corrosion-resistant, enables its usability in harsh scenarios.

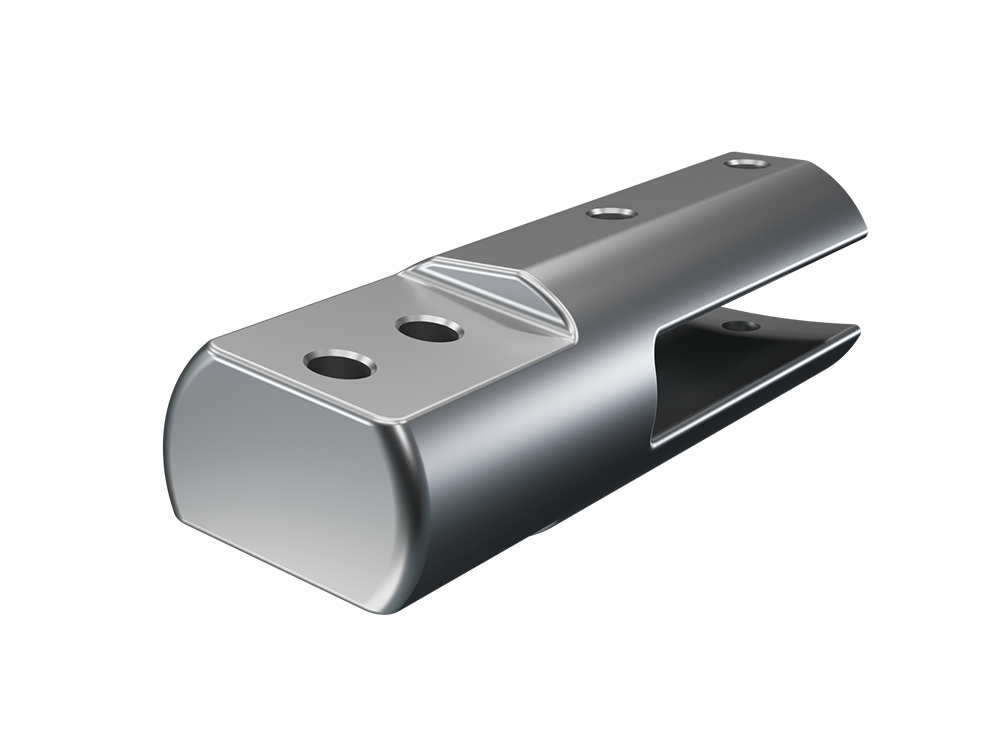

External Connector & Internal Safety Part System

Super Strong Load-bearing

KALE FANS thickened external connector with internal safety part withstands 300KG weight.

Double Protection

The external connector is made of aviation hard aluminum 7075-T6, with a tensile strength of 595 MPa.

Safety internal connector: wear-resistant & silent.

Millions of Times Tested

KALE FANS blade system stands more than a million times of overload fatigue experiments, overcomes the problem of long-term operation metal fatigue and brings you a long-lasting and stable excellent experience.

learn more

Technical Documentation

Model	Size	Air volume	Max speed	Fan weight	Power	Full load current	Noise level
HVLS-D6BAA73	24ft（7.3m）	14100m³/min	57RPM	110kg	1.5kW	5.7Amps/220V	<40.0dB（A）
						3.5Amps/380V
HVLS-D6BAA61	20ft（6.1m）	12500m³/min	58RPM	97kg	1.5kW	5.7Amps/220V	<40.0dB（A）
						3.5Amps/380V
HVLS-D6BAA55	18ft（5.5m）	11750m³/min	59RPM	85kg	1.5kW	5.7Amps/220V	<40.0dB（A）
						3.5Amps/380V
HVLS-D6BAA49	16ft（4.9m）	11300m³/min	62RPM	74kg	1.5kW	4.2Amps/220V	<40.0dB（A）
						2.4Amps/380V

download pdf

Applications

EURUS II Industrial HVLS fans generate powerful, large-volume airflow and boost comfort and productivity for factories and warehouses by enhancing air circulation.
